TEL (T-2045) ELEVATED TAXIWAY EDGE LIGHT

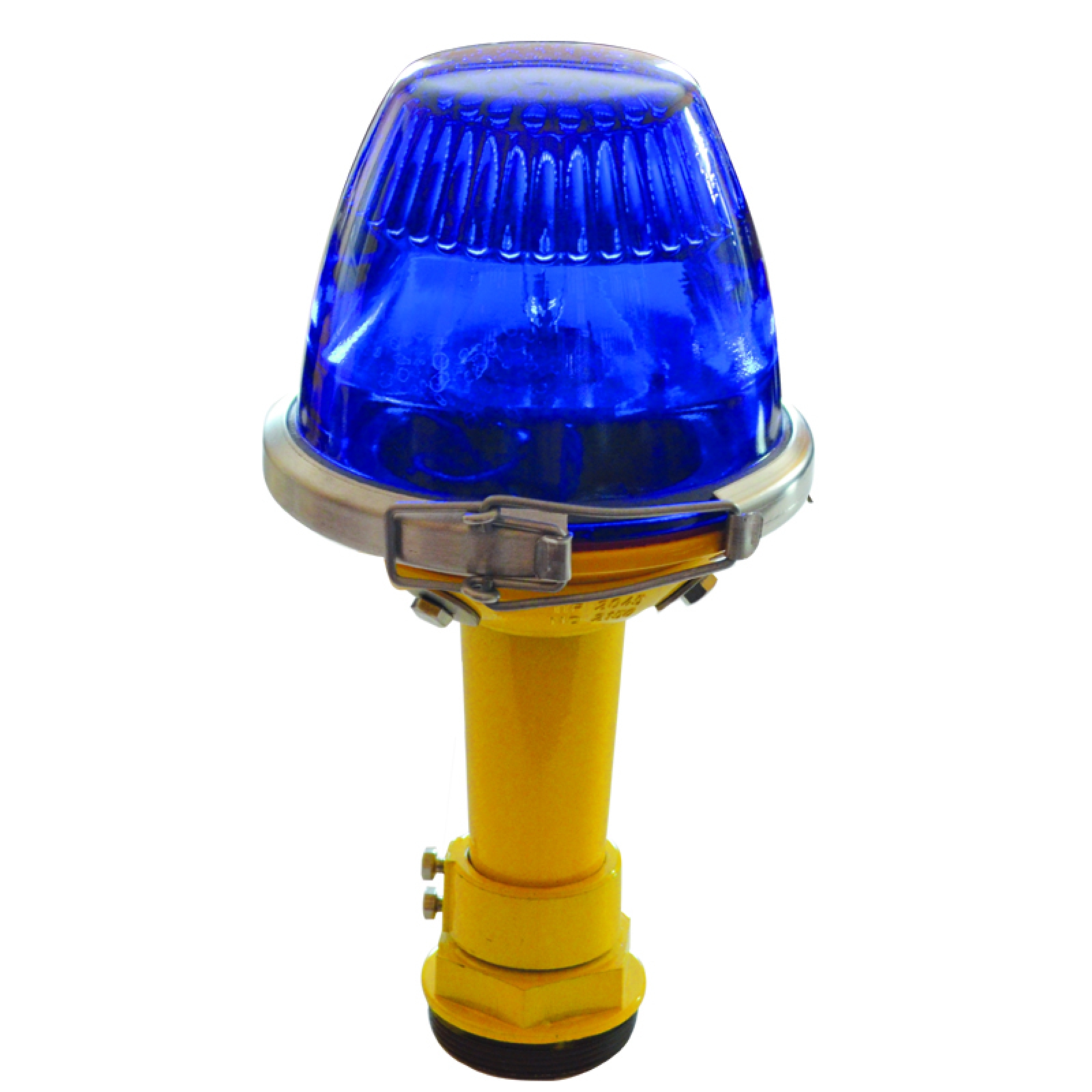

T2045-Taxiway-Edge-Blue

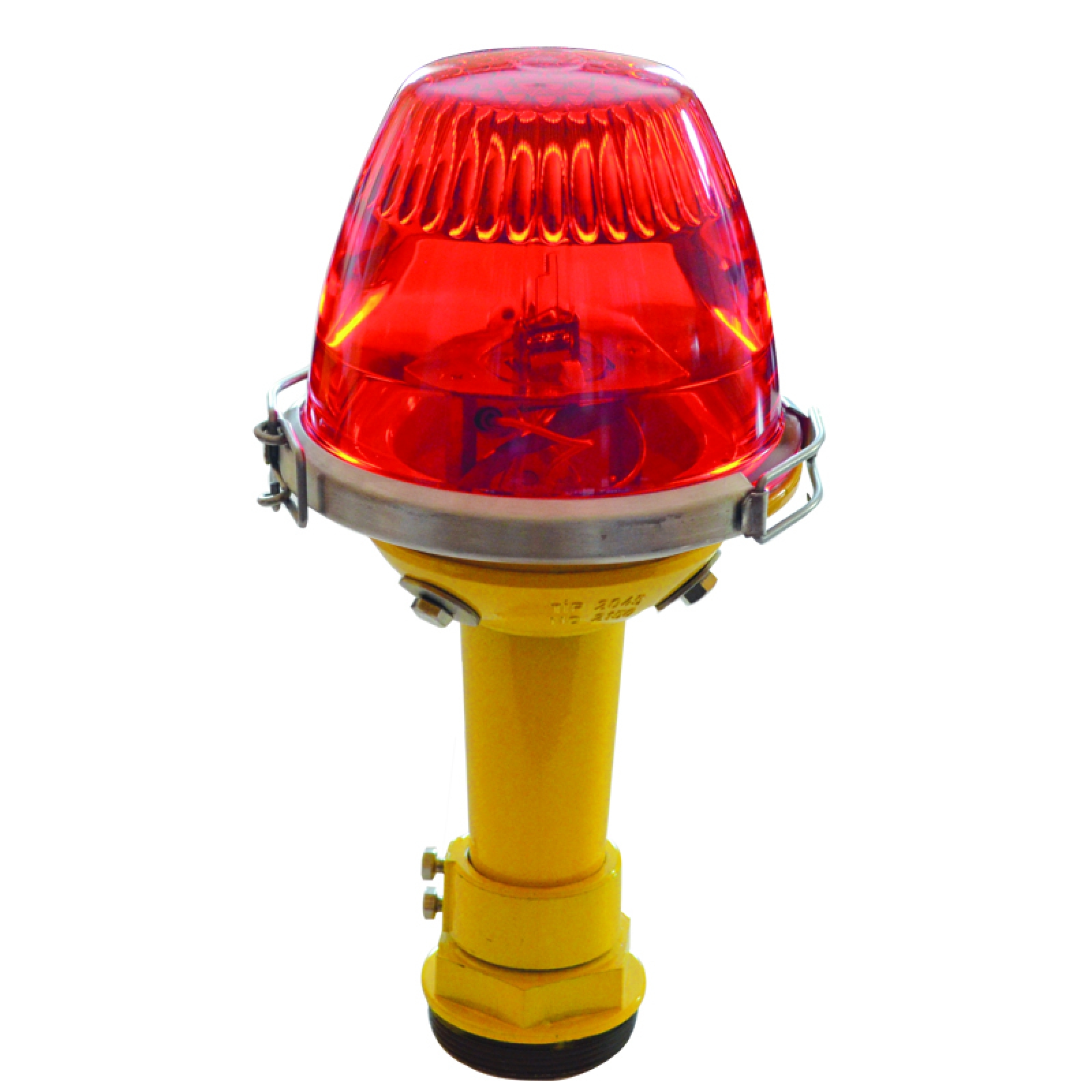

T-2045-Red

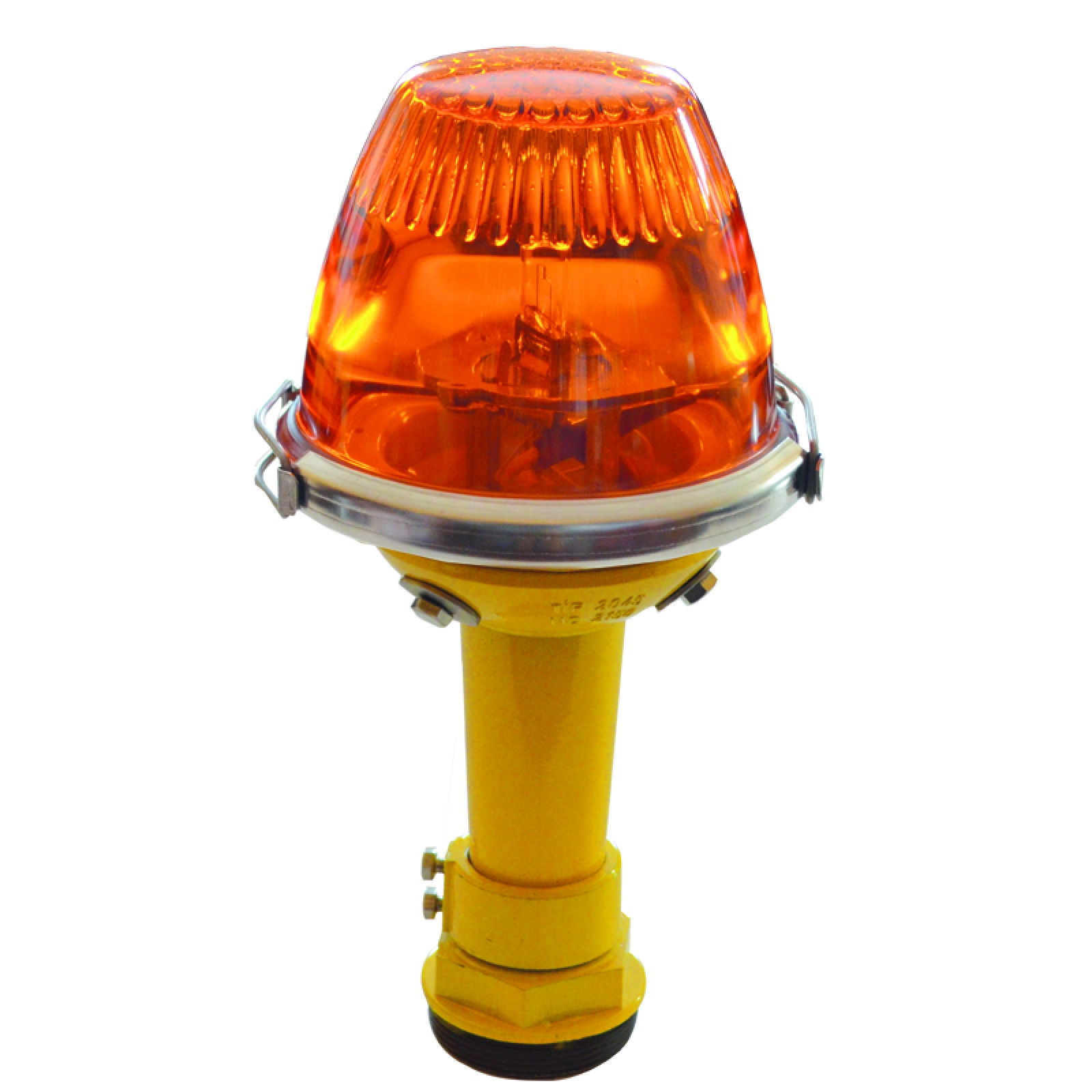

T2045-Heliport-Edge-Yellow

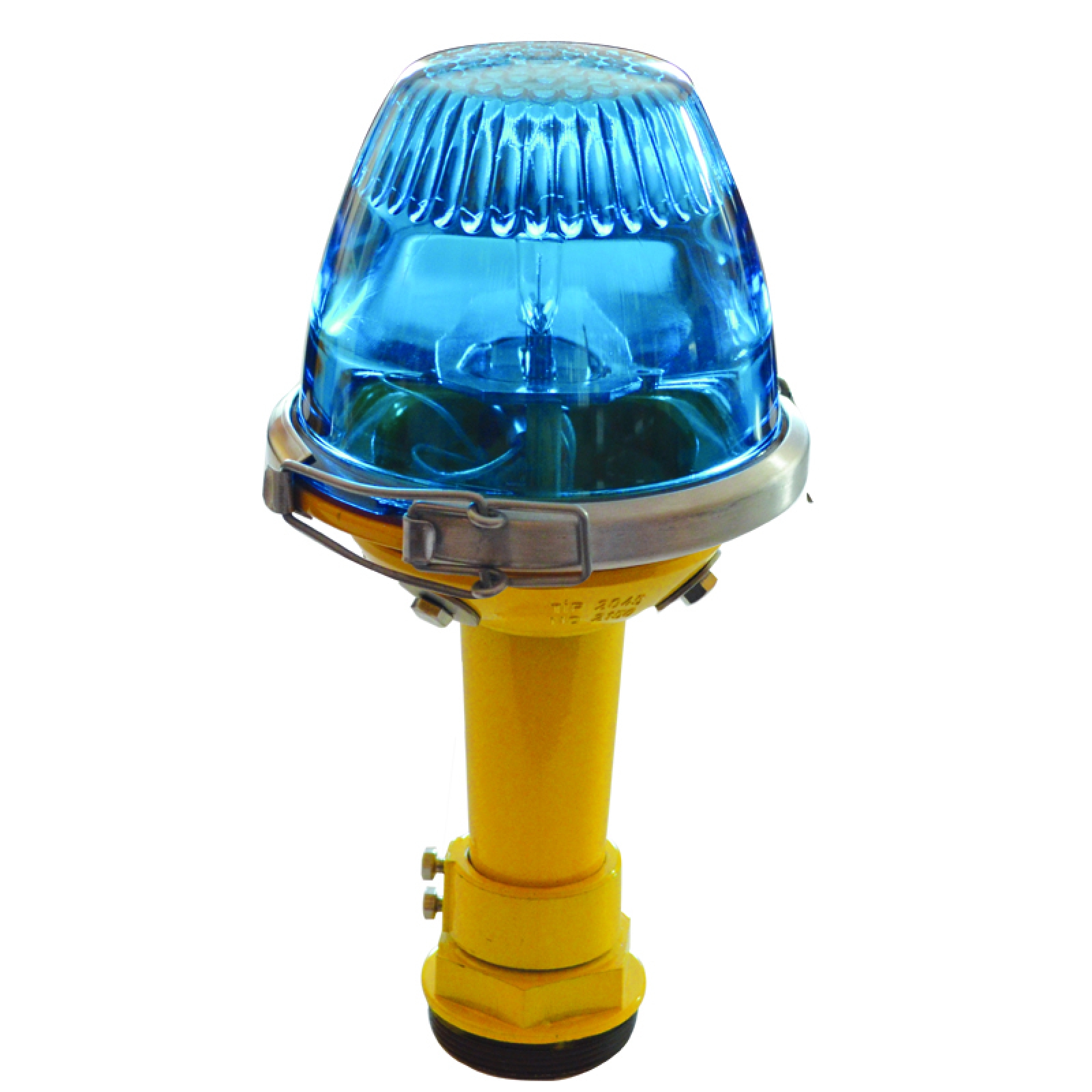

T2045-Heliport-Edge-Green

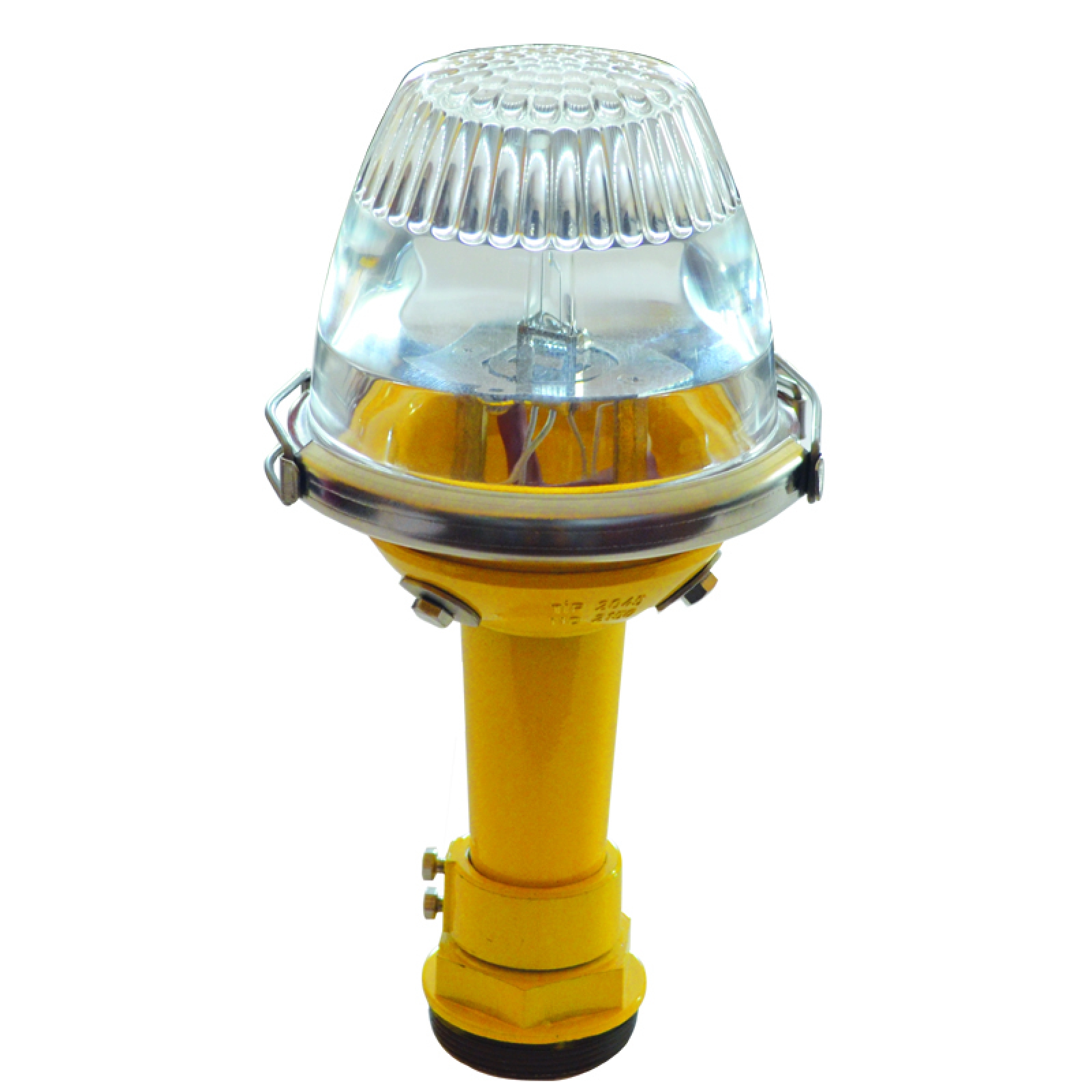

T-2045-Clear
Related Standards
  • FAA AC 150/5345-46 L-861T

  • ICAO Annex 14 Vol. I Para. 5.3.18

  • IEC TS 61827

  • STANAG 3316

Applications
  • As medium intensity taxiway edge light

  • As omni-directional heliport perimeter light (FATO & TLOF)

Important Features
  • IEC TS 61827 certified
  • LED module or pre-focused, pre-focused, quartz halogen bulb option with PK30d base
  • Thanks to its small dimensions, it withstands the strong jet winds of aircraft even when mounted at the threshold and end of the runway
  • Ease of installation Easily mounted on a 2″ pipe sleeve with a breakable coupling
  • Requires very little maintenance Since it consists of a small number of simple and functional parts, it requires little maintenance
  • Changing a bulb is easy no special tools required
  • Long bulb life The bulb life is 1500 hours at full brightness (6.6A), and in practice it is 2000-4000 hours thanks to use at lower brightness. The lifespan of the LED light source is 50000 hours at full brightness.
TEL (T-2045) Catalog
