Airfield Ground Lighting

Runway and Taxiway Inset Lights

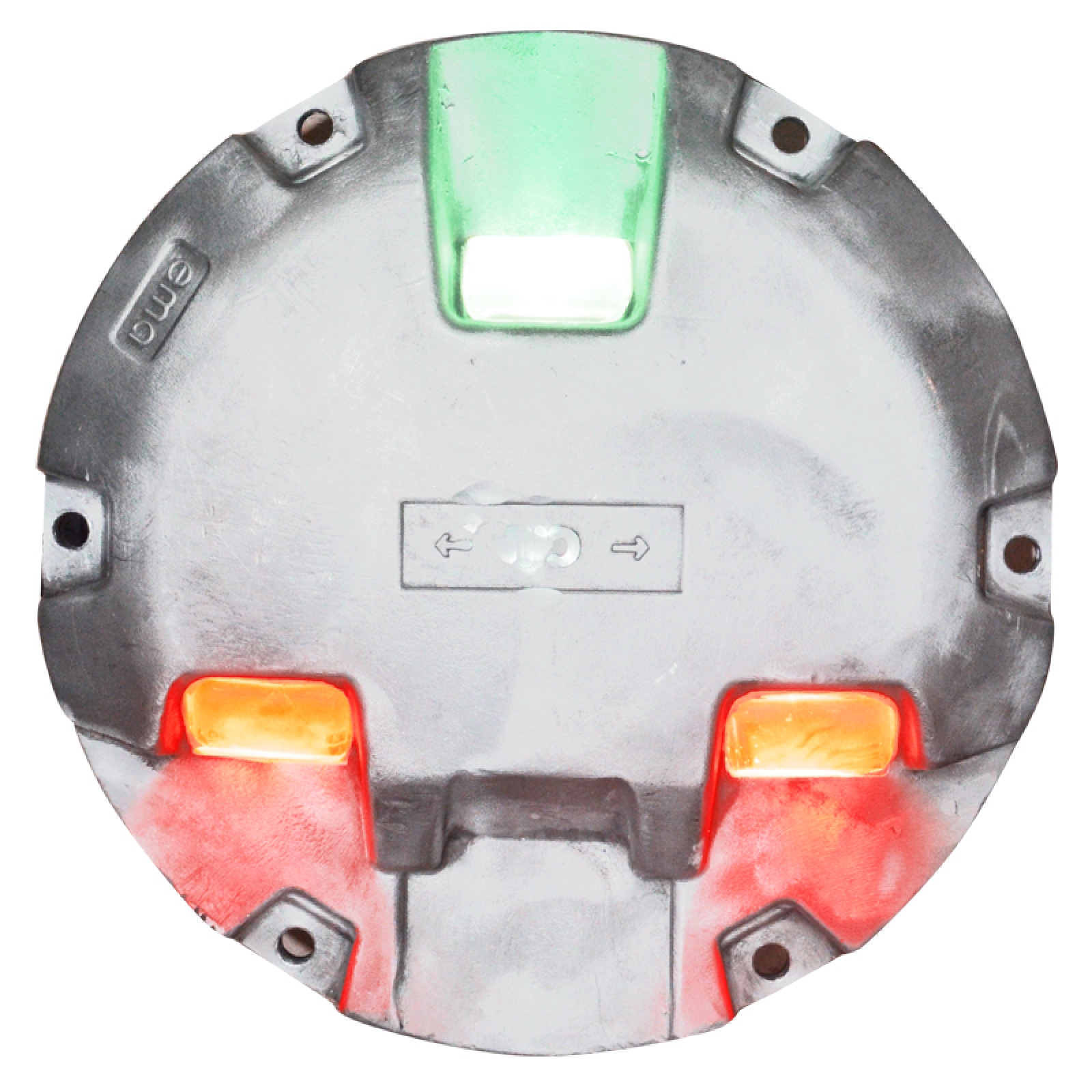

Rtel 12″ Inset Runway End, Threshold Light

Related Standards

Applications

As bidirectional high intensity combined threshold and runway end light in CAT I, II & III conditions
As high intensity unidirectional runway end light
As high intensity unidirectional runway threshold light

Important Features

ETL Certified
(L850D-RTEL-3-1-105G)
IEC TS 61827 Certified
Member of an extensive range of FAA Approved 12 inch diameter inset lights
Equipped with three or two 105 W 6,6 A halogen pre-focused reflector lamps
Long lamp life 1000 hours at full intensity (6.6 A) increases to 2000-4000 hours in practice as the light usually operates at lower intensities
Needs very little maintenance with its aluminium body and optics, high temperature resistant wiring, gasket and front glass and stainless steel screws
Lamp can be changed from the back easily without removing the relector and front glass, no special equipment is needed
Optical adjustment is done easily by two screws
Low rising smooth outer surface
Can be installed directly on a 12 inch shallow base, on a L-868 Size B deep base or by means of an adapter ring on a L-868 Size C deep base

RTEL Catalog
