Lb Airfield Light Bases

Related Standards

Applications

For ground fixing of elevated and inset lights, for underground housing of isolating transformers
Type L-867 Bases and extensions for applications subject to occasional light vehicular loading but no aircraft or other heavy vehicular loading.

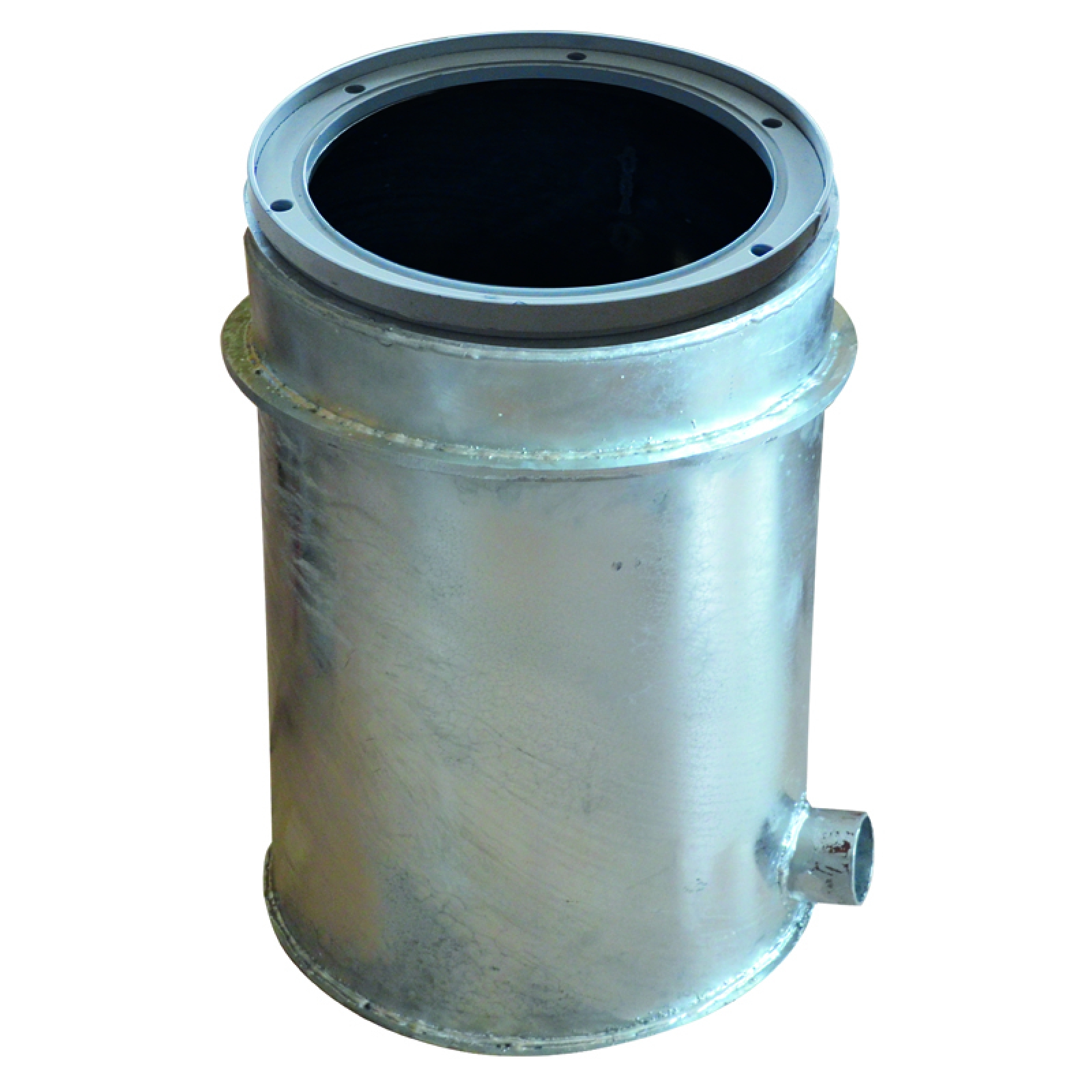

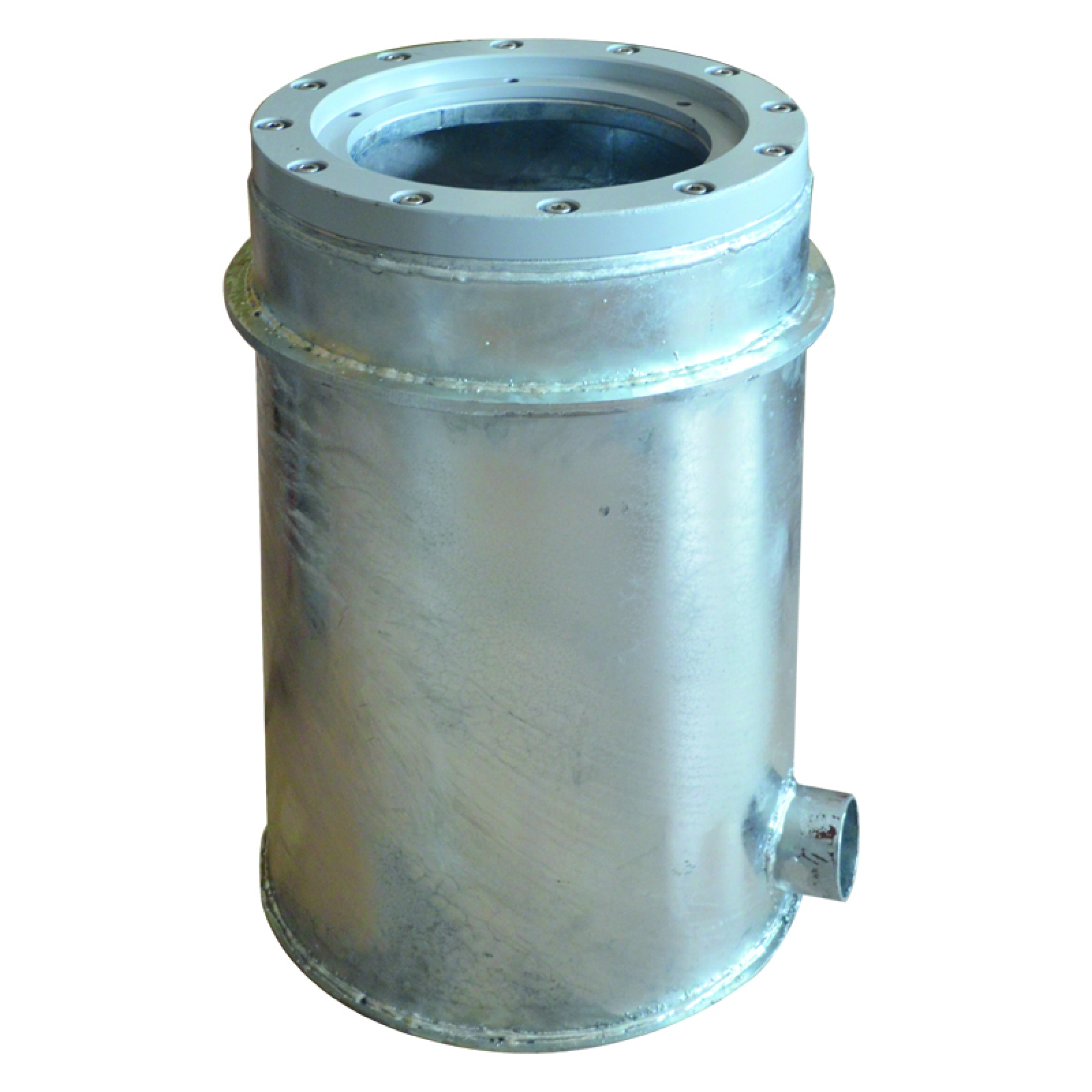

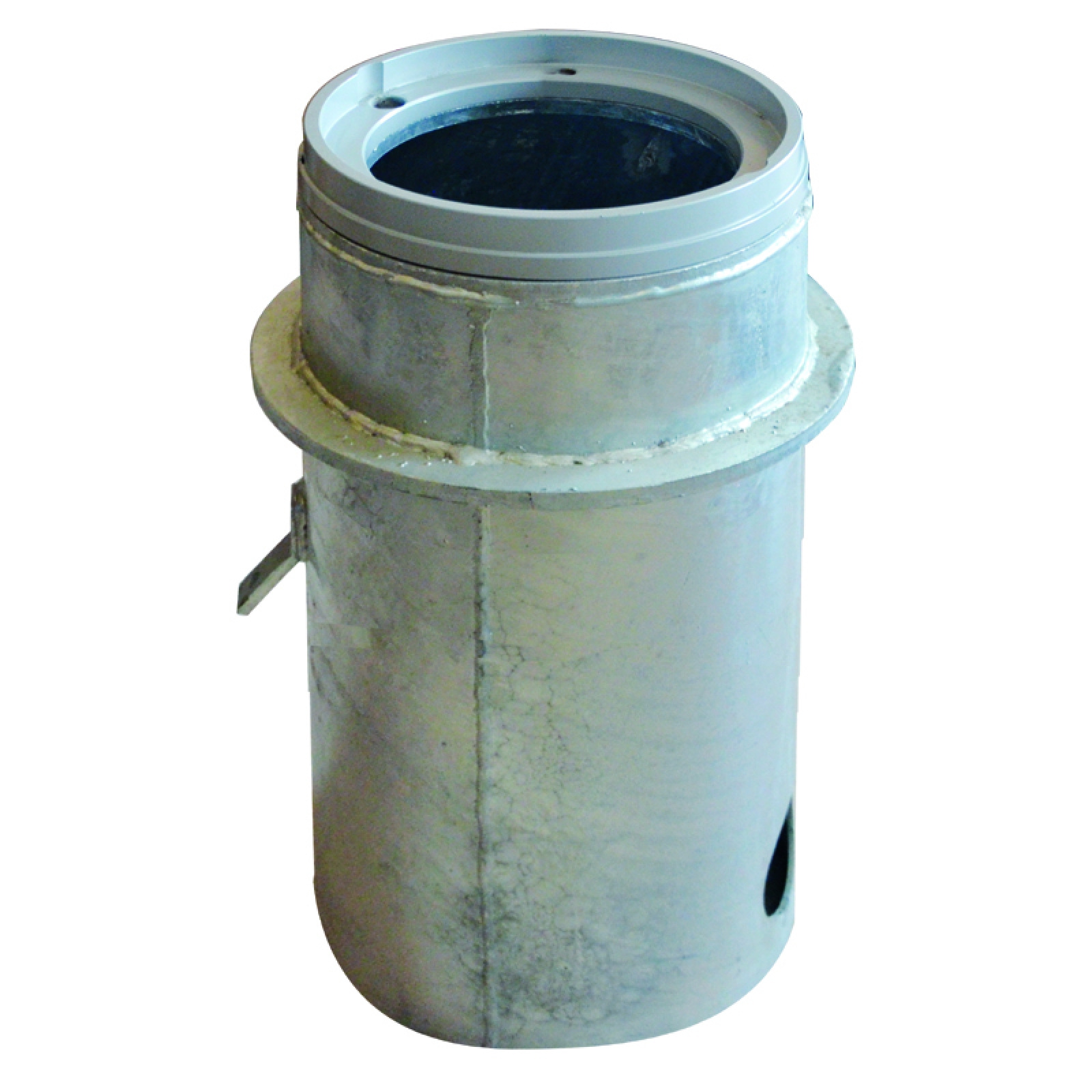

Type L-868 Bases and extensions for applications subject to aircraft and other heavy vehicular loading.

Important Features

Bases are Class IA, hot galvanized steel unless otherwise specified
Available diameters;

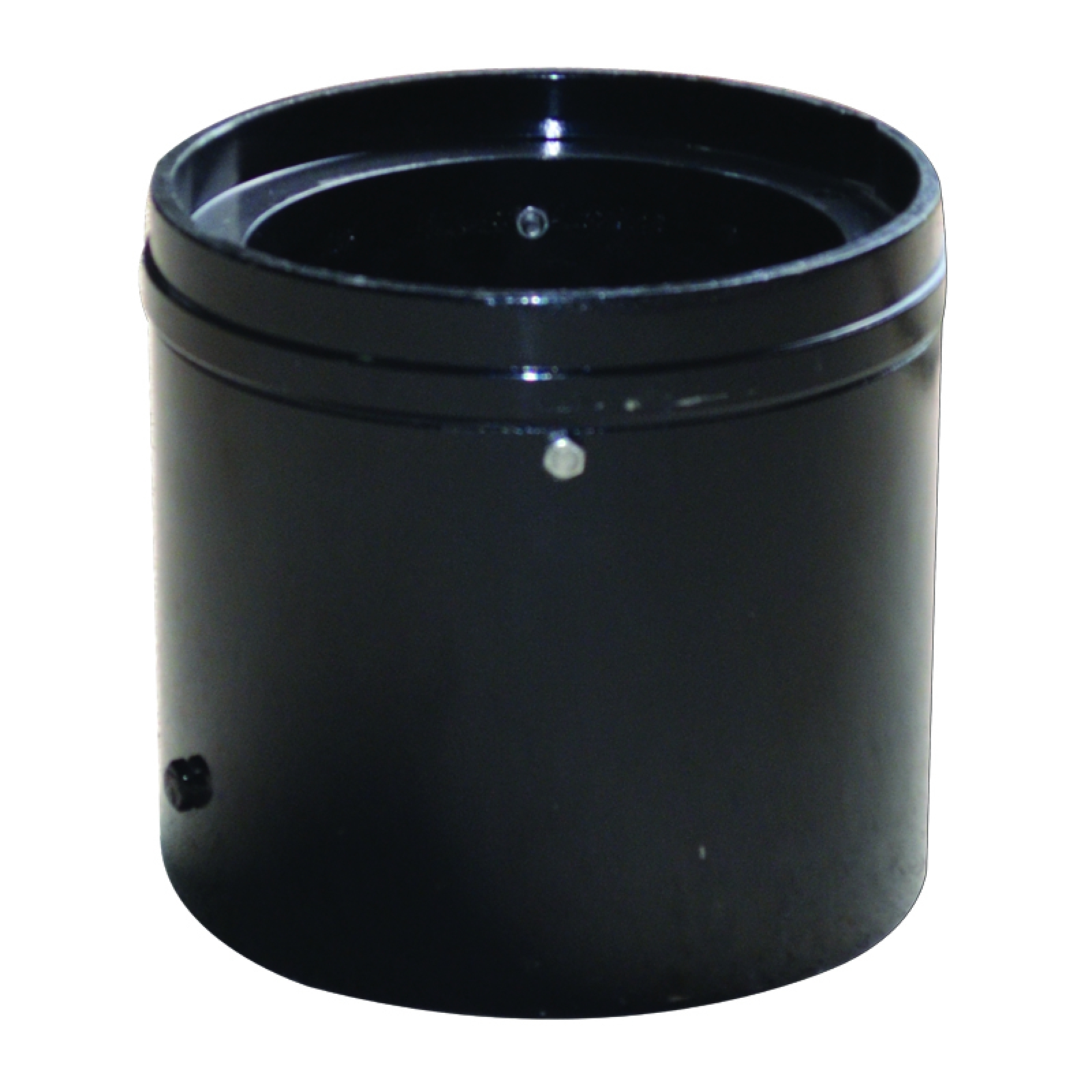

Size A – 8 inch (203 mm),

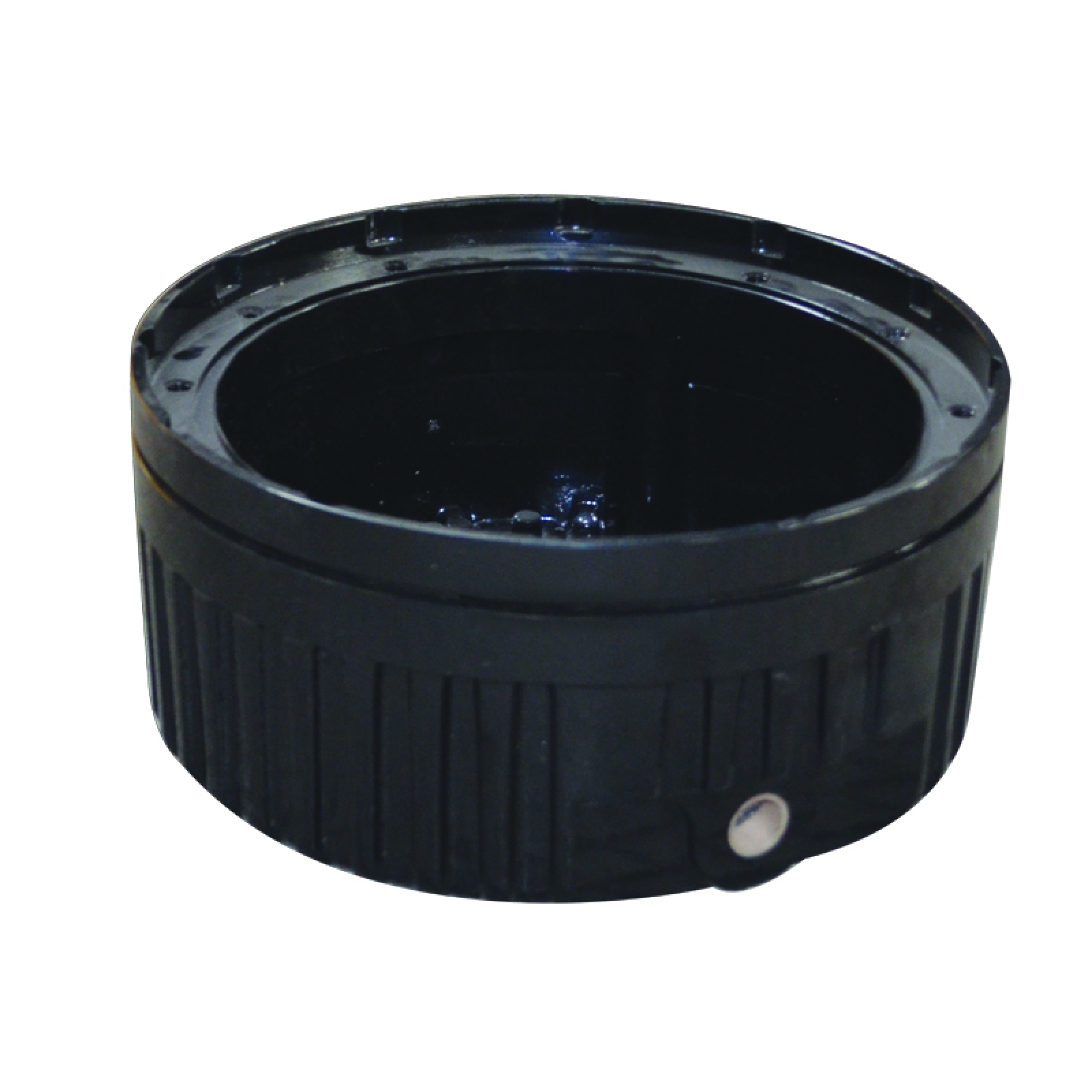

Size B – 12 inch (305 mm),
Size C – 15 inch (381 mm)
Flange rings are attached to side-walls with continuous watertight weld
Internal and external grounding straps are standard
Light bases can be provided with an optional plywood cover for shipping and ease of installation
12 inch to 8 inch and 15 inch to 12 inch adapter rings are available to match inset lights and bases of dierent sizes
Light bases can be provided with a special jig for levelling and stabilization during installation
