AGS AIRFIELD GUIDANCE SIGNS

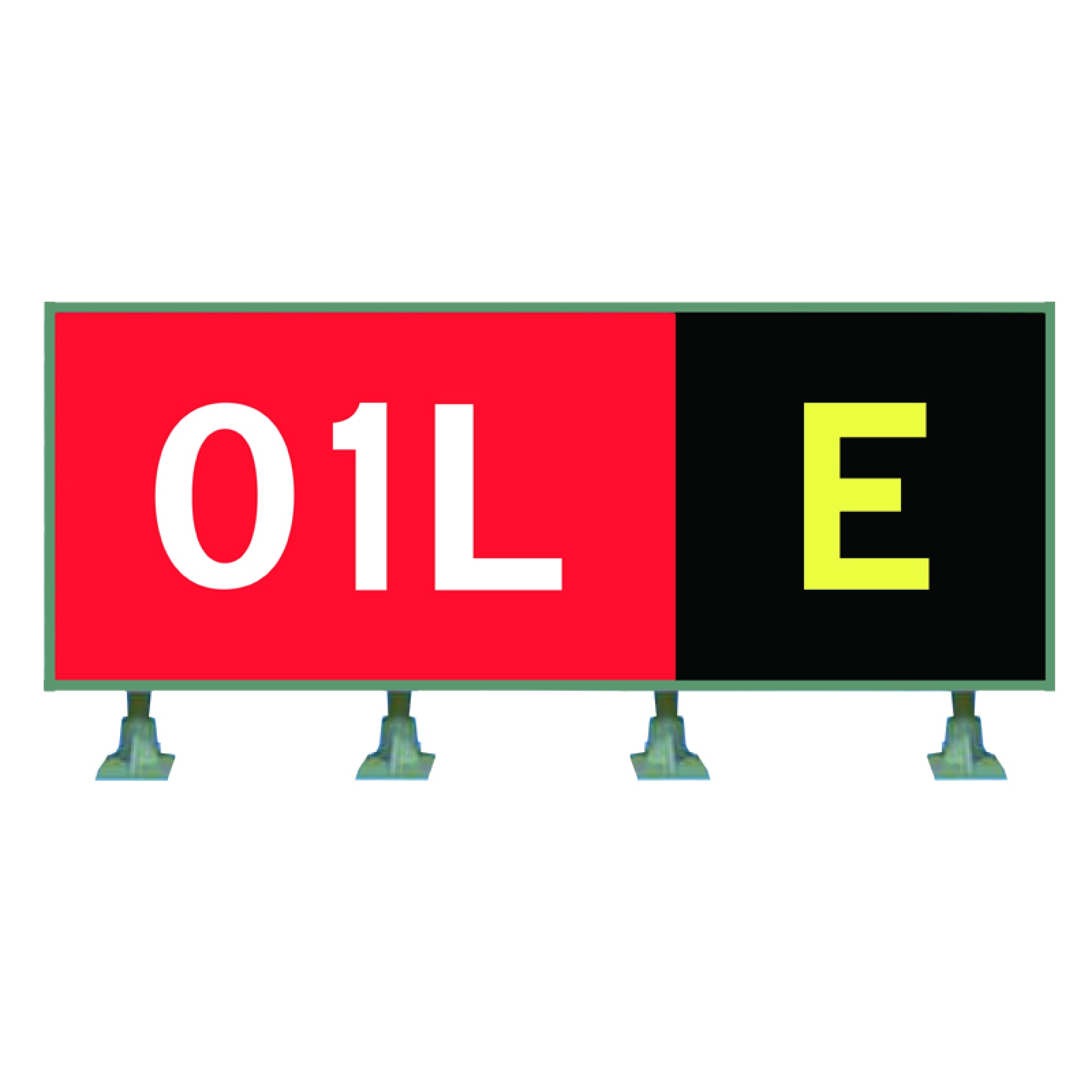

Airfield_Guidance_Sign1

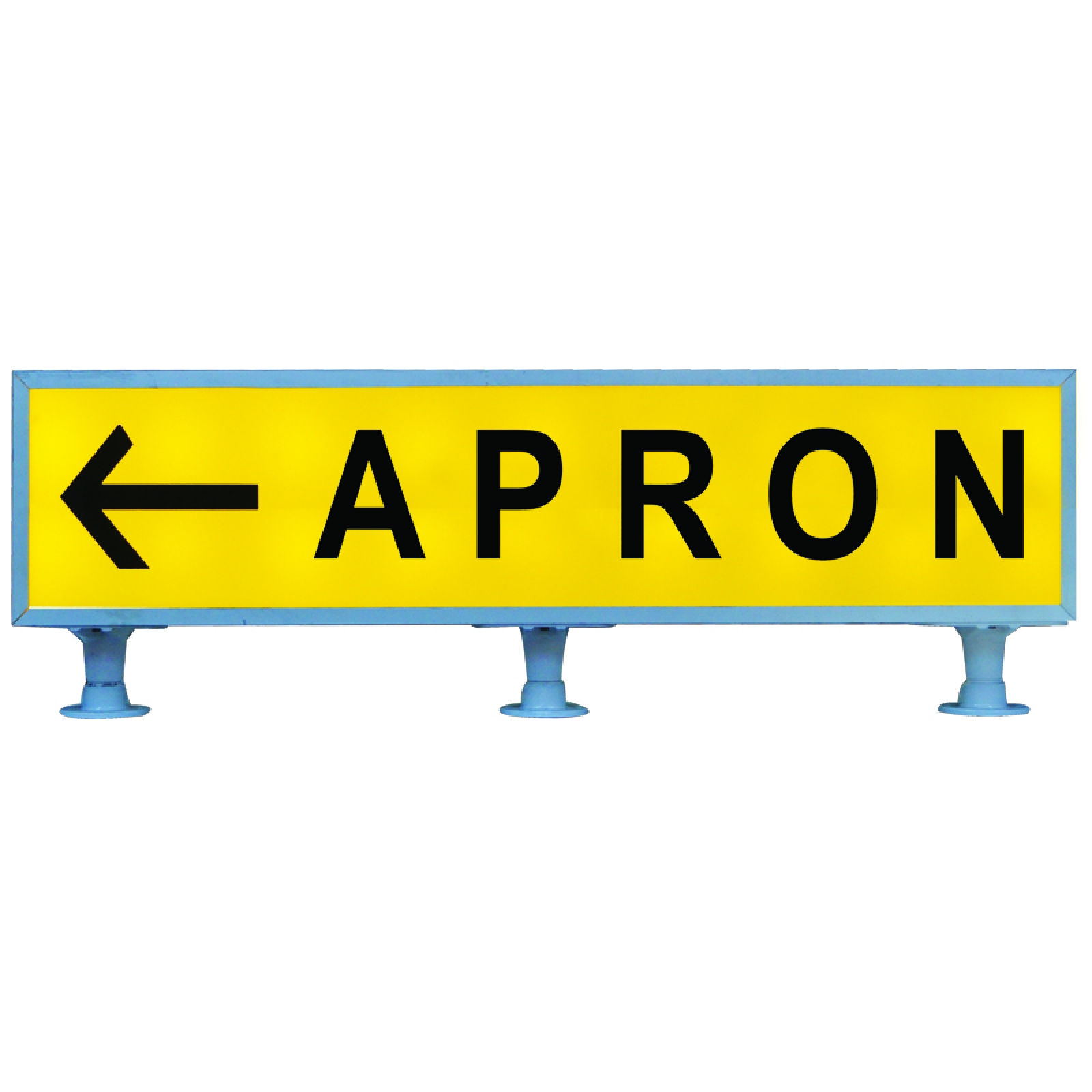

Airfield_Guidance_Sign2

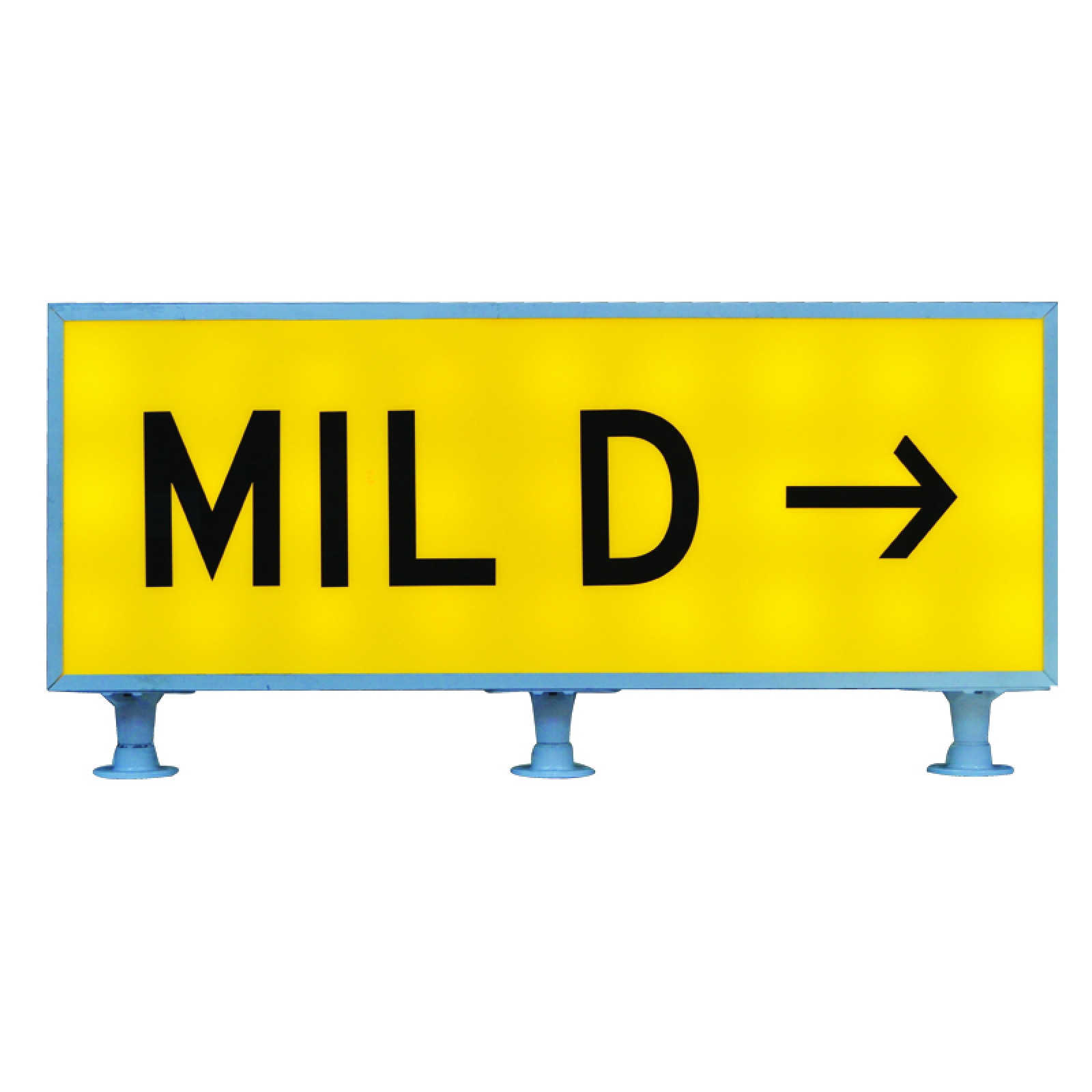

Airfield_Guidance_Sign3
Related Standards
  • FAA AC 150/5345-44

  • ICAO Annex 14 Vol. I Para. 5.4

  • Cenelec ENV 50235

  • STANAG 3316

Applications
  • Mandatory Instruction Signs
  • Information Signs
  • VOR Check Point Signs
  • Runway Distance Remaining Signs
  • Arresting Barrier Signs
Important Features
  • Cenelec ENV 50235 certified
  • Complies with the requirements of ICAO Annex 14, for luminance and chromaticity
  • Economical to run and easy to maintain; low power demand, long lamp life, vertical panels keep dirt from accumulating
  • Low weight, yet rigid construction due to aluminum extrusions and parts
  • Frangibility compliance to ICAO, FAA and ENV requirements
  • Reliable operation between -20 to +55ºC
  • Re-lamping is fast and easy with removable parts
  • Multiple lamps ensure signal availability in case of partial lamp failure
  • 24W fluorescent lamps used in all size with over 10000 hours of average rated lamp life and 75 lm/watt efficiency The 6000K light source also improves color contrast and sign legibility. Also available in LED or 6.6 A incandescent lamps
  • Seamless polycarbonate message panels are resistant to UV, abrasion and high temperatures. The 4mm thick panels provide improved resistance to jet blasts and strong winds
  • High power factor
AGS Catalog
