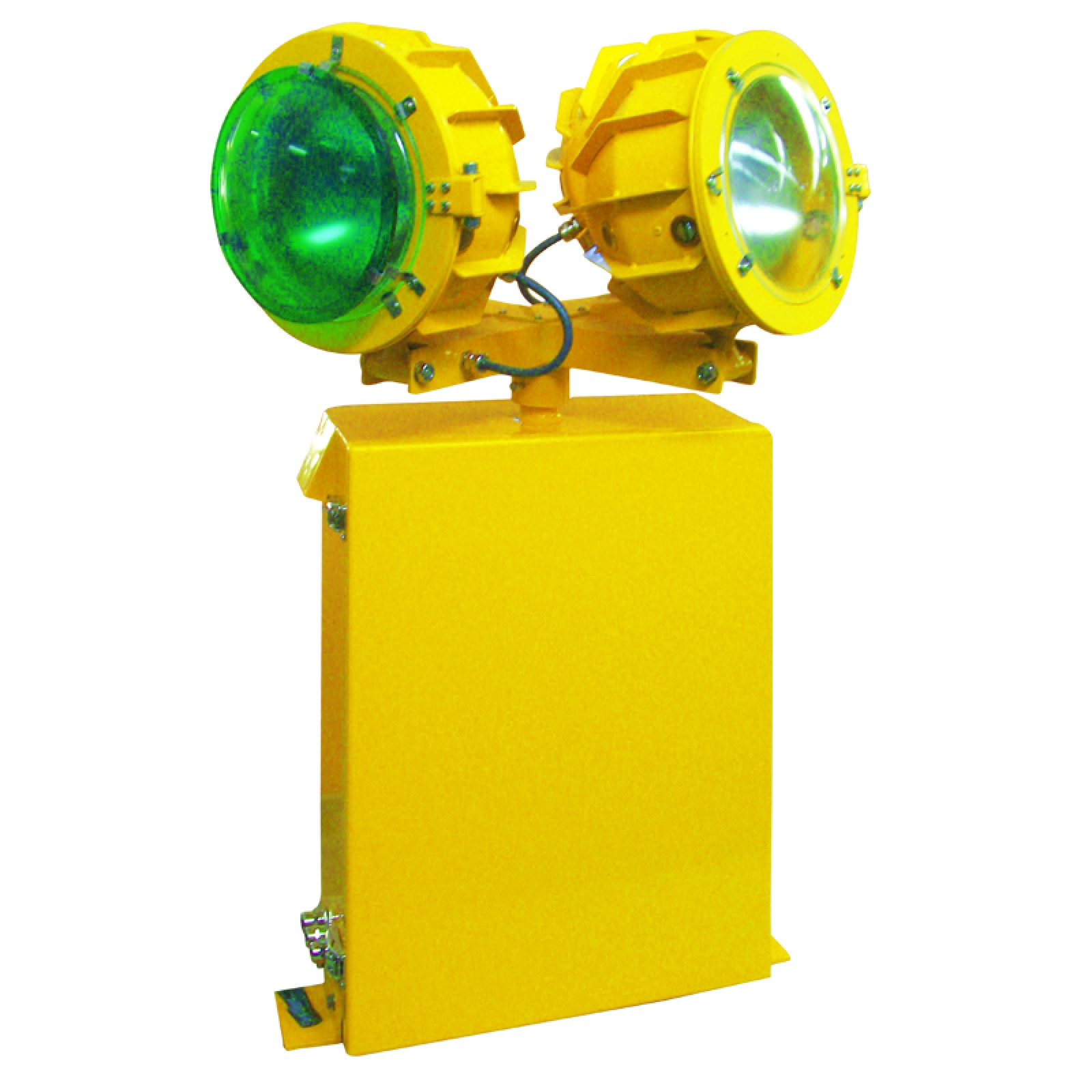

AB-4000 AIRPORT ROTATING BEACON
ARB-Airport-Rotating-Beacon
Related Standards
  • FAA AC 150/5345-12 L-801A

  • ICAO Annex 14 Vol. I Para. 5.3.3

  • STANAG 3316

Applications
  • As identification and location markers for airports primarily for night operations
Important Features
  • Available with two heads or with fail-safe four heads with automatic relay. If either of the primary lamps burn out, the stand-by pair of lamps will automatically light and cancel the primary set.
  • Standard green and clear (white) color filters
  • Tell-tale circuit is standard to warn when stand-by lamps go on
  • Very low maintenance for heavy duty motor and reductor box
  • 24±2 fpm and flash duration is 260 ms.
  • Working temperature from -40 to +55 Cº
  • Standart photocell relay,
  • Lamp PAR 64 1000 W 4000 hour lamp life ,
  • Wind velocity resist up to 160 km/h,
  • All moving parts are self lubricated types.
  • Lamp heads adjustable and preset to 5 degrees,
AB-4000 Catalog
